The Amtax Ammonia Analyzer is on Phase Out and will soon be obsolete. Hach now offers the advanced NH6000sc Ammonia Analyzer as a replacement. Available in 230V (LXV461.99.00211) and 115V (LXV461.99.00221) models to meet your needs.

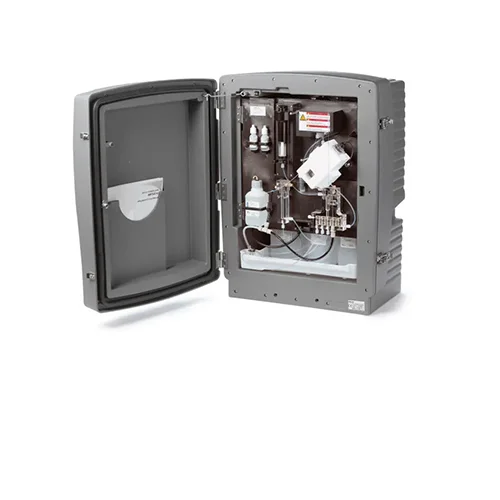

The Hach Amtax sc Ammonia Analyzer, with a 0.05 – 20.0 mg/L detection range and fast response time that includes sample preparation, is ideal for precise ammonia measurement in wastewater applications. The analyzer is environmentally controlled for rugged, outdoor installations and designed for easy installation at the measurement point. Its probe features a self-cleaning membrane, requiring minimal maintenance, and provides easy access to reagents and wear parts.
Transitioning to the NH6000sc Ammonia Analyzer
As the Amtax sc is being phased out, Hach introduces the NH6000sc—our newest ammonium analyzer. The NH6000sc builds on the trusted reliability and low maintenance of the Amtax, now with enhanced features and a modern design
Replacement part numbers include:
• LXV461.99.00211 (230V)
• LXV461.99.00221 (115V)
| Accuracy | Using standard solutions: 3% + 0.05 mg/L |
| Cable Length | 2 m fixed power cable at analyzer |
| Cable Length | 2 m fixed data cable at analyzer |
| Dimensions (H x W x D) | 720 mm x 540 mm x 390 mm |
| Enclosure Rating | IP55 |
| Filter Configuration | Use e.g. Filtrax |
| Flow | 1 – 20 L/h Sample (free of suspended solids) |
| Fuse Protection | Via SC1000 controller or power box. Maximum of 2 analysers per SC1000 or power box |
| Indoor/Outdoor | Outdoor |
| Lower Limit of Detection (LOD) | 0.05 mg/L NH4-N |
| Lower Limit of Detection (LOD) | 0.05 mg/L NH4–N |
| Material | ASA/PC UV-resistant |
| Measurement Method | GSE (Gas Sensitive Electrode) with screw-on membrane cap |
| Measuring Interval | 5 – 120 min, adjustable per 5 min. |
| Measuring Principle | NH4 is being converted to NH3 gas, wich is being measured at the GSE. |
| Number of Channels | 1 |
| Operating Humidity | 95% relative humidity, non-condensing. |
| Operating Temperature Range | -20 – 45 °C |
| Outputs | Current output, relays and bus communication via SC controller |
| Parameter | Ammonia |
| Permissible Chloride Range | Max. Cl– concentration: 1000 mg/L |
| pH Range | 5 – 9 pH |
| Power Requirements (Hz) | 50 Hz |
| Power Requirements (Voltage) | 115 – 230 VAC, powered by Power Box or SC Controller |
| Pressure Range | -30 – 50 mbar With continuous sample preparation; at overflow vessel |
| Range | 0.05 – 20.0 mg/L NH₄-N |
| Reproducibility | 2% + 0.05 mg/L |
| Response Time | < 5 minutes |
| Sample Level | Sample level in basin and filtration system must be below analyzer. |
| Sample Quality | Ultra filtrated or comparable. |
| Sample Temperature | 4 – 40 °C (39 – 104 °F) |
| Sampling Option | One channel continuous sample from filtration unit, e.g. Filtrax |
| Special Features | ASA UV-resistant, lockable housing, rated to IP55 Automatic cleaning and calibration Extensive self-diagnostics Optional 2-channel version for continuous sample preparation |
| Storage Conditions | 4 – 55 °C; 95% relative humidity, non-condensing |
| Warranty | 12 months |
| Weight | Without sample preparation system and without chemicals: 31 kg |
| What’s included? | 0.05 – 20 mg/L NH₄-N, 115 VAC Amtax sc Ammonia Analyzer, 3 month supply of all necessary consumables at 5 minute cycle time, user manuals. |
