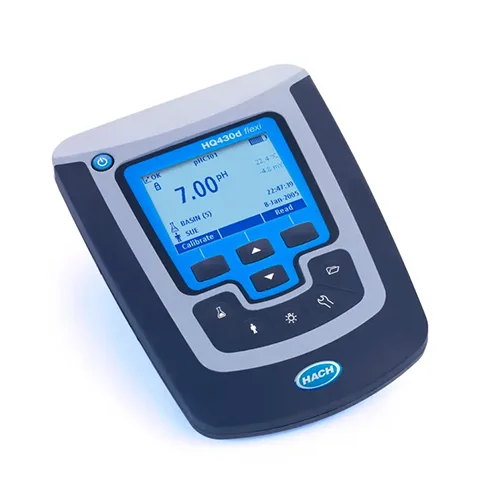

The Hach HQ430D Multi-Meter is an advanced BOD meter designed for water quality experts to take the guesswork out of measurements. The HQD BOD meter connects with smart Intellical electrodes that automatically recognize the testing parameter, calibration history, and method settings to minimize errors and setup time. The HQD Laboratory Meter is designed to withstand years of continuous lab use. HQD meters feature a simple user interface that does not require manuals or training to operate, ensuring ease of use and efficiency in your water quality testing.
The Intellical LBOD101 is the latest embodiment of Hach’s patented Luminescent Dissolved Oxygen (LDO) technology. This digital, luminescent dissolved oxygen (LDO) sensor features a replaceable, integrated stirring system. The LBOD101 measures dissolved oxygen for BOD (Biochemical Oxygen Demand) determination in BOD bottles during BOD5 testing applications. It is used for both initial and final dissolved oxygen measurements.
| Automatic Buffer Recognition | Yes |
| Backlight | |
| Barometric Pressure Measurement | Automatic compensation of DO when using an LDO or LBOD probe |
| BOD Bottle | 300 mL/100 pcs |
| BOD5/CBOD resolution | Available when used with Hach WIMS BOD Manager software |
| Calibration | Demal (1D/ 0.1D/ 0.01D); Molar (0.1M/ 0.01M/0.001M); NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm); Standard sea water; User defined |
| Calibration Intervals/Alerts/Reminder | Off, selectable from 2 hours to 7 days |
| Communication | Integrated USB type A (for USB 2.0 flash memory device, printer, keyboard) and Integrated USB type B (for PC) |
| Compliance Certifications | CE.WEEE |
| Conductivity measurement | Yes |
| Conductivity Measurement Range | 0.01 µS/cm – 200.0 mS/cm |
| Conductivity resolution | 0.01 µS/cm – 0.1 mS/cm upon selected measuring range |
| Contents | Meter + Probe(s) + Lab. Accessories |
| Custom Calibration Standards | Yes |
| Data Export | Download via USB connection to PC or flash memory device. Automatically transfer entire data log or as readings are taken. |
| Data Memory | 500 records/FIFO |
| Data Storage | Automatic, GLP ISO compliant reading data stored with calibration details. |
| Dimensions | 859 x 175 x 235 mm (3.38 x 6.88 x 9.25 in.) |
| Display | Detailed mode/Large mode |
| Display Type | 440 x 160 pixel LCD with backlight illumination |
| DO Measurement Range | 0.1 – 20.0 mg/L (ppm) 1 – 200% saturation |
| DO Resolution | 0.1 |
| DO sensor calibration | • 100% (water-saturated air (100%) calibration • 100% with 0 (water-saturated air (100%) calibration with 0 point • mg/L (calibration with a specified dissolved oxygen concentration (mg/L) solution) • mg/L with 0 (calibration with a specified dissolved oxygen concentration (mg/L) solution with 0 point) • Factory (calibration with the default LDO calibration) |
| Electrode Holder | NA |
| Electrode stand | Optional |
| GLP Features | Date; Time; Sample ID; Operator ID |
| Instrument | Benchtop |
| IP Rating | IP54 (Resistant to spray of water; Dust-proof) |
| ISE Direct Measurement Range | Yes |
| ISE Electrode Calibration | 2 – 5 points |
| Kit? | Yes |
| Languages | English, French, German, Italian, Spanish, Danish, Dutch, Polish, Portuguese, Turkish, Swedish, Czech, Russian |
| Lock Function | Continuous / Auto-stabilization (“press to read”) / At Interval |
| Measurement Method | Luminescent Dissolved Oxygen |
| Model | HQ430D – Multi/1 Channel |
| mV Measurement at Stable Reading | Yes |
| mV Measurement Range | -1500 – 1500 |
| mV Resolution | 0.1 mV |
| Needed Cable Length | 1 |
| Operating Error Messages | Clear text error messages displayed |
| Operating Humidity | 90 % relative humidity (non-condensing) |
| Operating Interface | Soft Touch Keypad |
| Operating Temperature | 0 – +60 °C (32 – 140 °F) |
| ORP Electrode Calibration | Predefined ORP standards (including Zobell’s solution) |
| Parameter | pH/Oxydo Reduction Potential (ORP) Conductivity/Total Dissolved Solid (TDS)/Salinity/Resistivity Dissolved Oxygen (DO) Biochemical Oxygen Demand (BOD) Ion Selective Electrode (ISE): Ammonia, Ammonium, Chloride, Fluoride, Nitrate, Sodium |
| PC Data Transfer Software | HQD Series Meter Data Transfer Utility |
| pH Buffer Sets | Color-coded: 4.01, 7.00, 10.01 pH; IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 pH DIN: 1.09, 4.65, 9.23 pH User-defined custom buffer sets |
| pH Electrode calibration | 1 – 3 Calibration points Calibration summary data logged and displayed |
| pH Measurement Range | 0 – 14 pH |
| pH Resolution | Selectable: 0.001/0.01/0.1 pH |
| Printer | Yes, Optional |
| Probes included | LBOD10101 |
| Range | 0.05 – 20.00 mg/L |
| Resistivity Measurement | 2.5 Ω.cm – 49 MΩ.cm |
| Resistivity Resolution | 0.1 |
| Salinity Measurement Range | 0 – 42 (ppt) (‰) |
| Salinity Resolution | 0.01 (ppt) (‰) |
| Sensor | LBOD10101 |
| Sensor | NA |
| Sensor C | NA |
| Sensors | Sensor A: LBOD10101 Sensor B: NA Sensor C: NA |
| TDS Measurement Range | 0.00 mg/L – 50.0 g/L as NaCl |
| TDS Resolution | 0.01 mg/L – 0.1 g/L upon measuring range. |
| Temperature Compensation | Automatic Temperature compensation for pH |
| Temperature Measurement | °C or °F |
| Temperature Range | -10°C – 110 °C |
| Temperature Resolution | 0.1 |
| Type of measurement | Lab Wasterwater Monitoring |
| Warranty | 36 months |
| Weight | 750 g (1.65 lb) without batterie; 850 g (1.87 lb) with batteries |
| What’s included? | Meter package includes HQ430D Laboratory Multi Meter, LBOD101 Luminescent/Optical Dissolved Oxygen (LDO) electrode for BOD Measurement with 1 m cable, Disposable 300 mL BOD Bottle (100 pcs), BOD Bottle Stoppers (25 pcs), BOD Bottle cap (6 pcs), 4 Alkaline 1,5V AA batteries, Power Supply Adapter, Power Cord, USB cable for data transfer, and Operating Documentation. |
