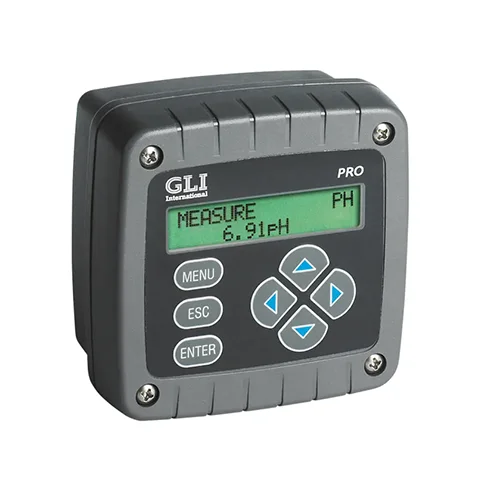

The economical PRO-E3 Transmitter is easy to use with its menu-guided user interface. The NEMA 4X enclosure can be panel, wall, pipe, or integral sensor mounted. The interface is identical to GLI’s 33-series analyzers. Versatile 2, 3, or 4-wire hookup capability. Isolated 4 – 20 mA output. The transmitter is also passcode protected.
| Communication | 4-20 mA Output |
| Compatible Instruments | Analog 3700 conductivity sensors |
| Display | 2-line by 16 character LCD |
| Load | Maximum permissible load dependent on power supply voltage, transmitter hookup arrangement, and wire resistance |
| Material | Enclosure: Polycarbonate |
| Operating Temperature Range | -20 – 60 °C at 0 – 95% RH (non-condensing) |
| Parameter | Electrodeless Conductivity |
| Power Requirements (Voltage) | 12 – 30 V DC |
| Relative Humidity | 0 – 95 % non-condensing |
| Repeatability | ± 0.05 % of span, at 25 °C |
| Response Time T90 | 60 s |
| Storage Conditions | -30 to 70 °C 0-95% Relative humidity, non-condensing |
| Temperature Compensation | -10 – 110 °C Automatic with selection for NTC 300 Ω, Pt1000 or Pt100 or manually fixed at a user-entered temperature; additional selectable temperature correction factors (ammonia, morpholine or user-set pH/°C linear slope) |
| Temperature Drift | 0.02 % of span per °C (zero and span), at 25 °C |
| Warranty | 12 months |
| Weight | 0.280 kg |
| What’s included? | Controller, User Manual |
