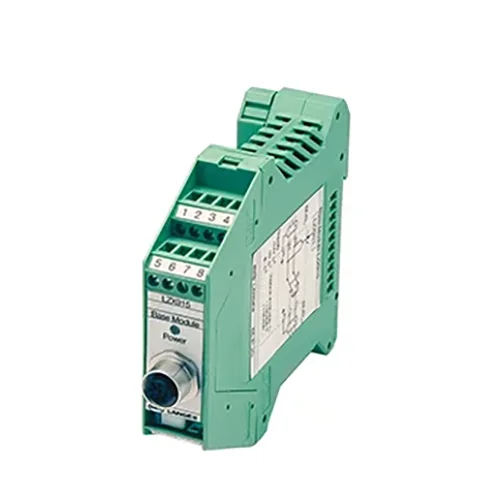

The SC1000 base DIN-rail module, is part of the variety of DIN-rail communication modules that are available to accompany the SC1000 Multi-parameter Universal Controller.
| Dimensions (H x W x D) | 99 x 22.5 mm x 115 mm |
| Function | – Supply of expansion modules with 24VDC and connection to the SC1000 network. – Setting terminating resistor (with DIP switch) for the SC1000 network. – Provision of connection for a display module (LXV402) for the configuration of the system. |
| Housing Material | Polyamide, flammability class in accordance with UL 94: V0; enclosure rating IP20 Installation on a DIN rail (35 mm) in accordance with DIN EN 50022 |
| Power Requirements (Voltage) | 24 VDC |
| Temperature Range | Operation: 4 °C – 40 °C (39 °F – 104 °F); 95% relative humidity, non-condensing |
| Weight | 150 g |
| What’s included? | Module Only |
