The only controller needed for all of your water quality measurements.

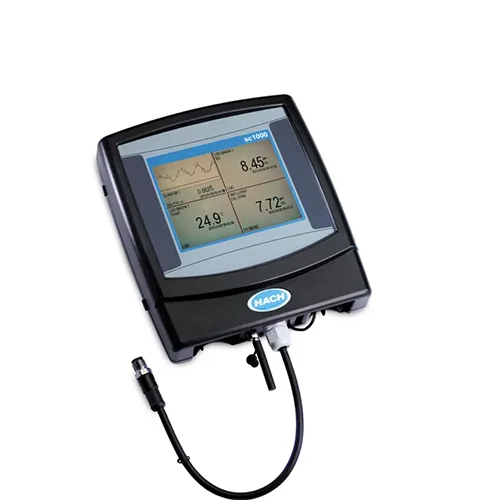

A controller system to which SC sensors can be connected and from which they can be controlled consists of a single SC1000 display module and one or more SC1000 probe modules. The system is configured modularly in line with customer-specific requirements and can be expanded at any time with additional measurement stations, sensors, inputs, outputs and bus interfaces.
The probe module is used to connect SC sensors to a measurement station. Several probe modules can be linked to create a SC1000 network.
Performance certified according to MCERTs regulation.
| Alarm | Low alarm point, low alarm point deadband, high alarm point, high alarm point deadband, off delay, and on delay |
| Altitude | 2000 m (6562 ft) maximum |
| Analog Output Functional Mode | PID, high/low phasing, setpoint, deadband, overfeed timer, off delay, on delay |
| Certifications | North American Certifications: cTUVus to UL 61010A-1 and CSA C22.2 No. 1010.1 FCC ID QIPMC56 / IC ID 267W-MC56 European Certifications: |
| Communication | Modbus (RS485): Advanced communications/networking with PLC or SCADA system directly from analyzer Profibus DP/V1 (certified) Ethernet service port, RJ45, 10 MB/s |
| Dimensions (H x W x D) | 250 mm x 315 mm x 150 mm |
| Display | ¼ inch VGA graphical backlit TFT color Glas/Glas-Touch screen, high resistance 320 x 240 pixels |
| Display Viewing Area | 11.4 x 8.6 cm (4.5 x 3.4 in) |
| Enclosure Rating | IP65 |
| Inputs | Up to 12 analog 0-20 mA, maximum impedance 500 Ohms per probe module. Additional inputs are available with additional probe modules. |
| Material Enclosures | ABS (display module) and metal (probe module) enclosure with corrosion resistant finish |
| Mounting | Surface, panel, and pipe (horizontal and vertical) with optional sun shield |
| Network Connectivity | Modbus TCP, License Key LZY598 |
| Operating Temperature Range | -20 – 55 °C (-4 – 131 °F) / 0 – 95% relative humidity, non-condensing |
| Output | Up to 12 analog 0/4-20 mA, maximum impedance 500 Ohms per probe module. Additional analog outputs with additional probe modules. Optional digital communcations via Modbus (RS485) and Profibus DP/V1. |
| Storage Conditions | -20 – 70 °C (-4 – 158 °F), 0 – 95% relative humidity, non-condensing |
| Warranty | 12 months |
| Weight | Approximately 6.5 kg (14.33 lb), depending on configuration |
| What’s included? | SC1000 Probe Module: Conduit (no Power Cord); Prognosys Module, Modbus 485 Network Module; No I/O Modules; Four (4) sc Sensor Connectors, With Conduits for Relay Connection Dimensions (HxWxD): 250 mm x 315 mm x 150 mm Approximate Weight: 16.5 kg (14.33 lbs) |
