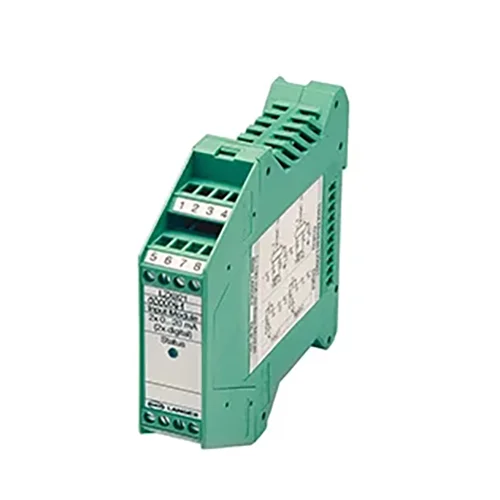

The SC1000 mA input DIN-rail module (2 inputs), is part of the variety of DIN-rail communication modules that are available to accompany the SC1000 Multi-parameter Universal Controller.
| Dimensions (H x W x D) | 99 x 22,5 mm x 115 mm |
| Housing Material | Polyamide, flammability class in accordance with UL 94: V0; enclosure rating IP20 Installation on a DIN rail (35mm) in accordance with DIN EN 50022 |
| Operating Temperature Range | -20 °C – 55 °C (-4 °F – 131 °F); 95% relative humidity, non-condensing |
| Power Supply | 24 VDC from LZX915 basis module |
| Temperature Range | Storage: -20 °C – 70 °C (-4 °F – 158 °F); 95% relative humidity, non-condensing |
| Weight | 150 g |
| What’s included? | Module Only |
