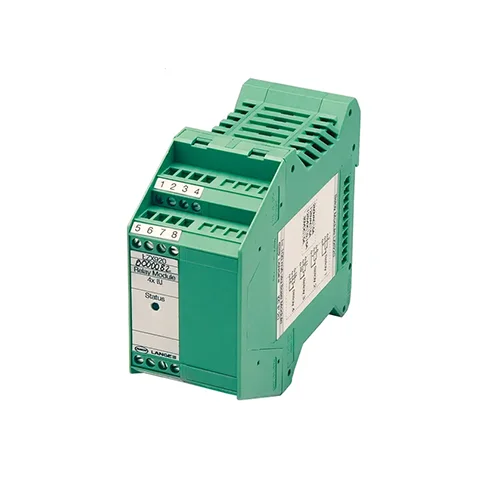

SC1000 relay module for DIN-rail mounting, 4 Relays, max. 240V

Code: LZX920

Liên hệ báo giá Gọi điện xác nhận và giao hàng tận nơi

Dimensions (H x W x D)	99 x 45 mm x 115 mm
Housing Material	Polyamide, flammability class in accordance with UL 94: V0; enclosure rating IP20 Installation on a DIN rail (35mm) in accordance with DIN EN 50022
Operating Temperature Range	Operation: 4 °C – 40°C (39 °F – 104 °F); 95% relative humidity, non-condensing
Power Requirements (Voltage)	24 VDC
Power Supply	24 VDC from LZX915 basis module
Specifications	4 × change-over contacts, (SPDT) Current consumption: 100 mA Maximum switching voltage: 250 VAC, 125V DC Nominal switching current: 250 VAC, 5 A; 125 VAC, 5 A; 30 V DC, 5 A Can be programmed for: limit, status or for timer, status indication by LED
Temperature Range	Operation: 4 °C – 40 °C (39 °F – 104 °F); 95% relative humidity, non-condensing
Weight	200 g

Hãng sản xuất	Hach
