Accurate flow measurement at an economical price.

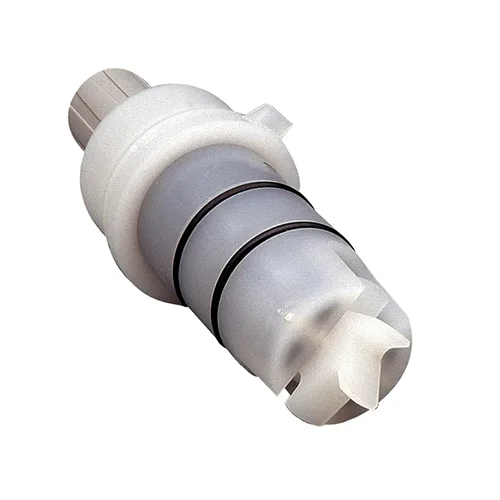

Polypropylene material, Tee-Mount style impeller flow sensor, 6m (20ft) analog cable
| Accuracy | In PVC Tee ± 1 % of full scale from 1 – 30 ft./sec (0.3 – 9.0 m/sec) |
| Accuracy 2 | In Cast Bronze Tee ± 1 % of full scale from 1 to 20 ft./sec (0.3 to 6.0 m/sec) |
| Accuracy 3 | In PVDF Tee ± 1 % of full scale from 1 to 30 ft./sec (0.3 to 9.0 m/sec) |
| Body material | Polypropylene |
| Cable Length | 20 |
| Mounting | Tee mount |
| Pressure Range | In Cast Bronze Tee 400 psi at 176 °F (27.5 bar at 80 °C) |
| Pressure Range | In a PVDF Tee, 100 psi at 177 °F (6.9 bar at 25 °C) |
| Repeatability | (in any tee) ± 0.5 % of full scale |
| Sensor Cable | 2 conductor (plus sheild), 20 ft. (6 m) |
| Temperature | In Cast Bronze Tee 176 °F at 400 psi (80°C at 27.5 bar) |
| Temperature | In a PVC Tee, 140°F at 40 psi (60°C at 2.75 bar) |
| Temperature | In PVC Tee 140 °F at 40 psi (60°C at 2.75 bar) |
| Warranty | 12 months |
| Wetted Materials | Polypropylene body, Polypropylene impeller, TTZ (transformation toughened zirconia), ceramic shaft and EPR O-rings |
| What’s included? | Includes: sensor with 20 ft cable and manual |
